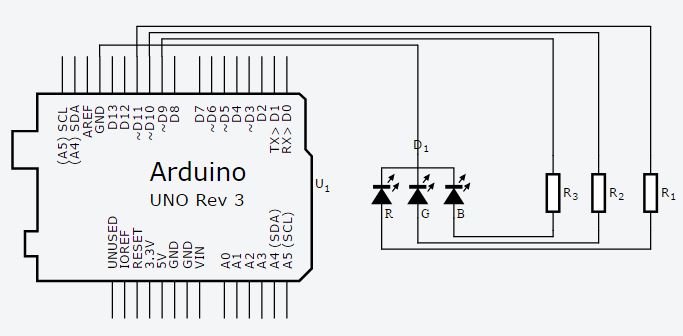

RGB Led

•  (1) Diffuse RGB LED 10mm 1
•  (3) 270 Ω Resistors (red, purple, brown stripes) - you can use up to 1K ohm although it will be a little dimmer

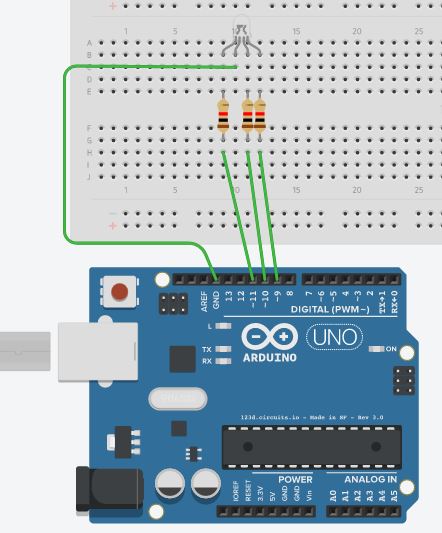

• (1) Half-size breadboard
• (1) Arduino Uno R3
• Jumper wires

int redPin = 11;

int greenPin = 10;

int bluePin = 9;

//uncomment this line if using a Common Anode LED

//#define COMMON_ANODE

void setup()

{

  pinMode(redPin, OUTPUT);

  pinMode(greenPin, OUTPUT);

  pinMode(bluePin, OUTPUT);

}

void loop()

{

  setColor(255, 0, 0);  // red

  delay(1000);

  setColor(0, 255, 0);  // green

  delay(1000);

  setColor(0, 0, 255);  // blue

  delay(1000);

  setColor(255, 255, 0);  // yellow

  delay(1000);

  setColor(80, 0, 80);  // purple

  delay(1000);

  setColor(0, 255, 255);  // aqua

  delay(1000);

}

void setColor(int red, int green, int blue)

{

  #ifdef COMMON_ANODE

    red = 255 - red;

    green = 255 - green;

    blue = 255 - blue;

  #endif

  analogWrite(redPin, red);

  analogWrite(greenPin, green);

  analogWrite(bluePin, blue);

}
