001d_HeadsOrTails

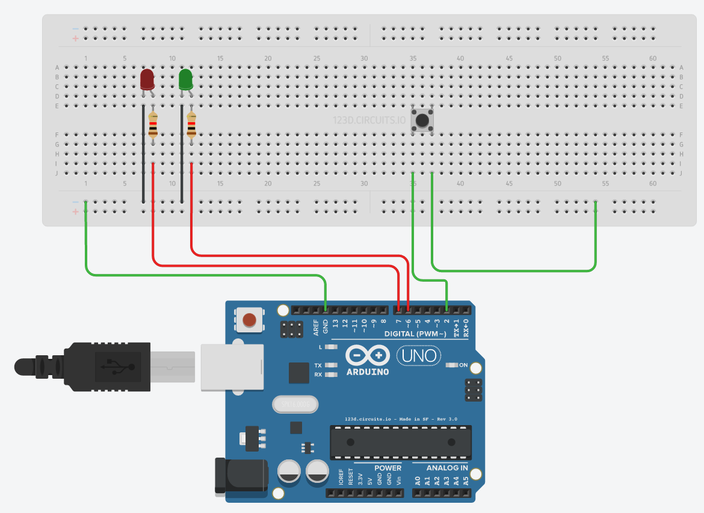

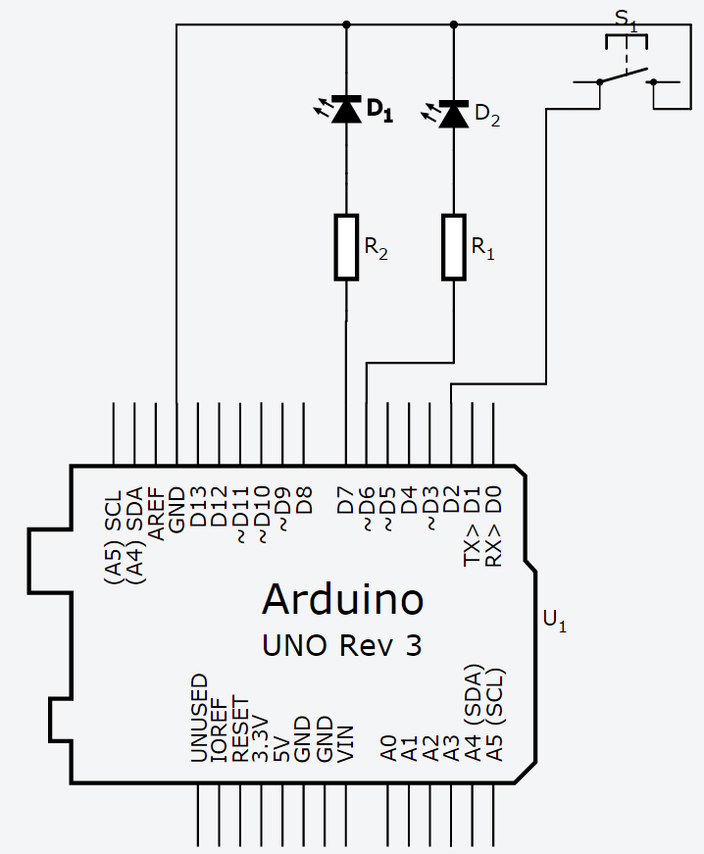

- Create a project that can make the Arduino play the game Heads or Tails by flashing two colored LEDs. For this assignment I will be using a tactile push button.

int btn2 = 2;

int led1 = 6;

int led2 = 7;

int time = 20;

int buttonState = 0;

int led1State = 1;

int led2State = 0;

int ledTemp = 0;

void setup() {

  pinMode(led1, OUTPUT);

  pinMode(led2, OUTPUT);

  pinMode(btn2, INPUT_PULLUP);

}

void loop(){

    buttonState = digitalRead(btn2);

  if (buttonState == LOW){

      digitalWrite(led1, led1State);

      digitalWrite(led2, led2State);

      delay(time);

      ledTemp = led1State;

      led1State = led2State;

      led2State = ledTemp;

  }

  else{

    digitalWrite(led1, led1State);

    digitalWrite(led2, led2State);

  }

}

What I learned:

• I learned how to use properly use input from a pushbutton

Problems:

• I had problems when you let go of the push button
• I had to figure out a way to find which LED was on last and to code it so it stays on
